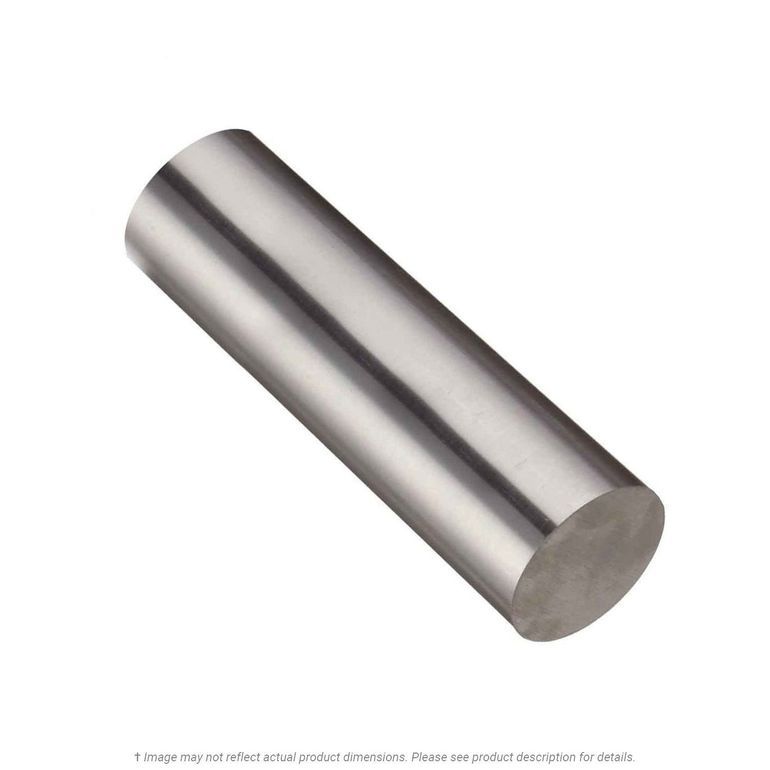

1-3/8" x 3 ft. O-1 Drill Rod Oil Hardening
Selected O-1 Drill Rod Oil Hardening
1-3/8" x 3 ft. O-1 Drill Rod Oil Hardening
Item #: 137RRDO
Brand: KL Jack Quality Vendor
Manufacturers:
Description
Grade O-1 Drill Rod Tool Steel is one of the most widely selected grades of drill rod. It is made from grade O-1, an oil-hardening, non-deforming general tool steel. Tools and dies made from grade O-1 will have good wearing qualities since the tungsten and higher chromium content of O-1 offers improved wear resistance. O-1 is ideal for manufacturing bushings, dies, knock-out pins, shims, machined parts and slitting cutters, among many other uses.
Drill Rod Standard Dimensional Tolerances
| Round Drill Rod | Standard Tolerance (section) | Concentricity Max T.I.R. | Standard Tolerance (length) |
|---|---|---|---|
| 3.000" to 0.500" dia. | ±0.001" | 0.005" | +1/8", -0.0 |
| 0.499" thru 0.125" dia. | ±0.0005" | 0.005" | +1/8", -0.0 |
| 0.124" and smaller dia. | ±0.0003" | 0.005" | +1/8", -0.0 |
Technical Specs
| Manufacturer | KL Jack Quality Vendor |
|---|---|
| Item Type | Drill Rod |
| System of Measurement | Inch |
| Diameter | 1-3/8" |
| Length (inches) | 3 ft. (36") |
| Finish | Ground and Polished |
| Grade | O-1 |
| Hardness | 89-110 HRB |
| Material | Steel |
| Specification - ASTM | A681 |
