1/4" x 100' Galvanized 7x19 Cable

Selected Galvanized 7x19 Cable
Galvanized 7x19 Cable

Description

*Working Load Limit Is Based On A Design Factor Of 5:1
**Not For Aircraft Use

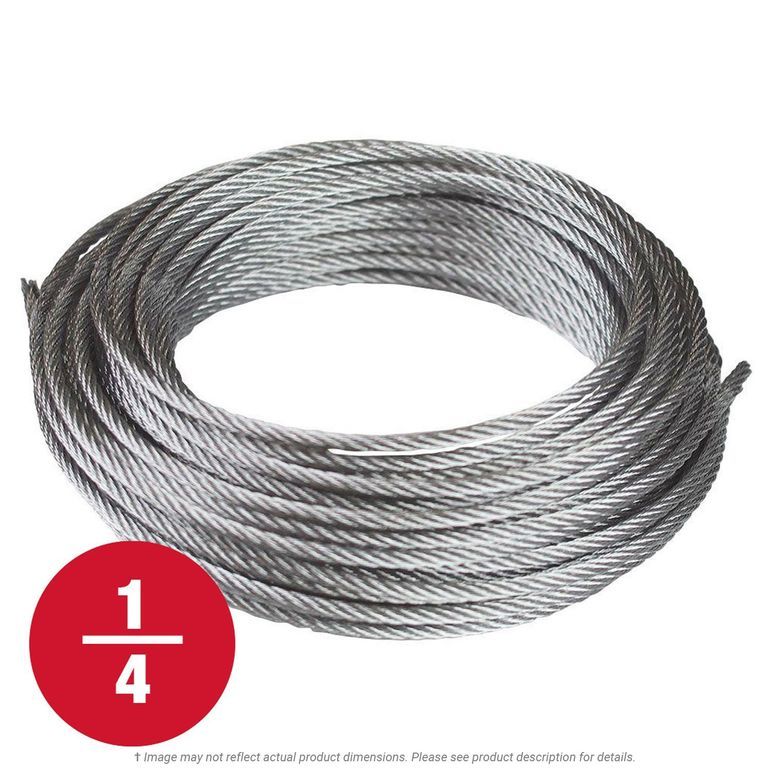

Galvanized (Zinc Coated) commercial grade cable which is used for many material handling applications and common uses such as garage door cables, winch lines, tie-downs, hanging signs, and guy wires. Flexible construction runs easily over pulleys. Cable is made in accordance with Federal Specification RR-W-410. The cable is zinc coated for durability and moderate corrosion resistance. The 7x19 construction consists of 19 individual wires laid in a spiral around a center core wire to form a strand. Seven strands are then wound together to form a cable. Breaking strength ( failure point under load) is 5 times the listed working load limit (WLL) with a design factor 5 to 1. Any breaking strength ratings and load limits shown are listed for comparison and reference purposes only and are not for engineering use. Not intended for aircraft use or in overhead lifting applications.

Technical Specs

Manufacturer
KL Jack Quality Vendor
Item Type
Cable/Wire Rope
Diameter
1/4"
Length (inches)
100 ft. (1,200")
Construction
7x19
Core
IWRC
Finish
Galvanized
Flexibility
Extra Flexible
Kind
7x19
Material
Steel
Specification
RR-W-410
Weight
11 lbs per 100'
Working Load Limit (Straight Pull)
1,400 lbs
