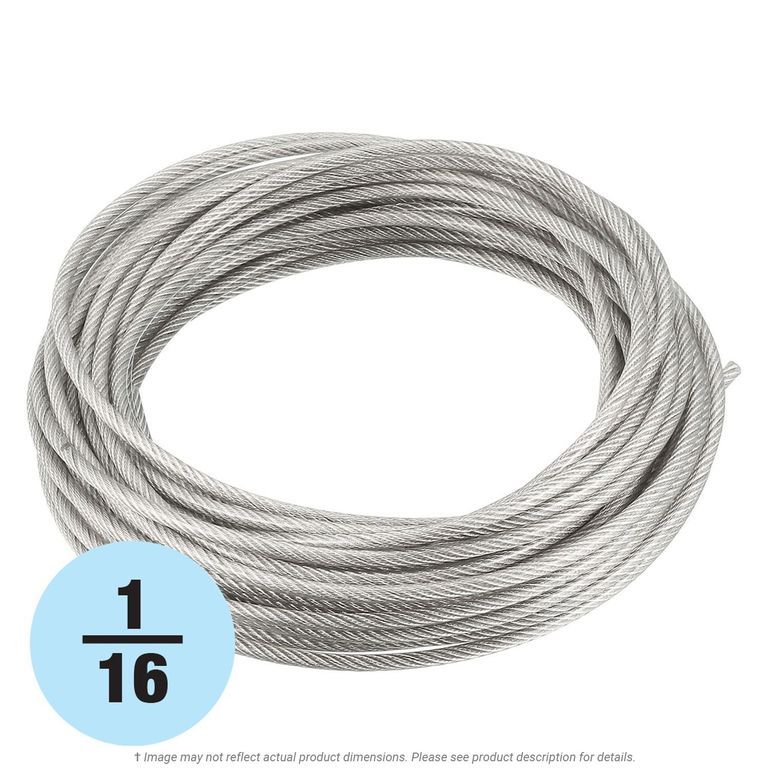

1/16" x 100 ft. Stainless Steel 7x7 Cable

Selected Stainless Steel 7x7 Cable
Stainless Steel 7x7 Cable

Description

*Working Load Limit Is Based On A Design Factor Of 5:1
**Not For Aircraft Use

Grade 304 Stainless Steel commercial grade cable which is used for many material handling applications and common uses such as garage door cables, winch lines, tie-downs, hanging signs, and guy wires. Flexible 7x7 construction can be used over pulleys. Cable is made in accordance with Federal Specification RR-W-410. 304 Stainless Steel cable offers superior corrosion resistance in the marine environment or in the presence of oxidizing acids. The 7x7 construction allows for good flexibility and resists abrasion. Breaking strength ( failure point under load) is 5 times the listed working load limit (WLL) with a design factor 5 to 1. Any breaking strength ratings and load limits shown are listed for comparison and reference purposes only and are not for engineering use. Not intended for aircraft use or in overhead lifting applications.

Technical Specs

Manufacturer
KL Jack Quality Vendor
Item Type
Cable/Wire Rope
Diameter
1/16"
Length (inches)
100 ft. (1,200")
Construction
7x7
Core
IWRC
Flexibility
Flexible
Grade
304
Kind
7x7
Material
Stainless Steel
Specification
RR-W-410
Weight
1 lb per 100'
Working Load Limit (Straight Pull)
96 lbs
