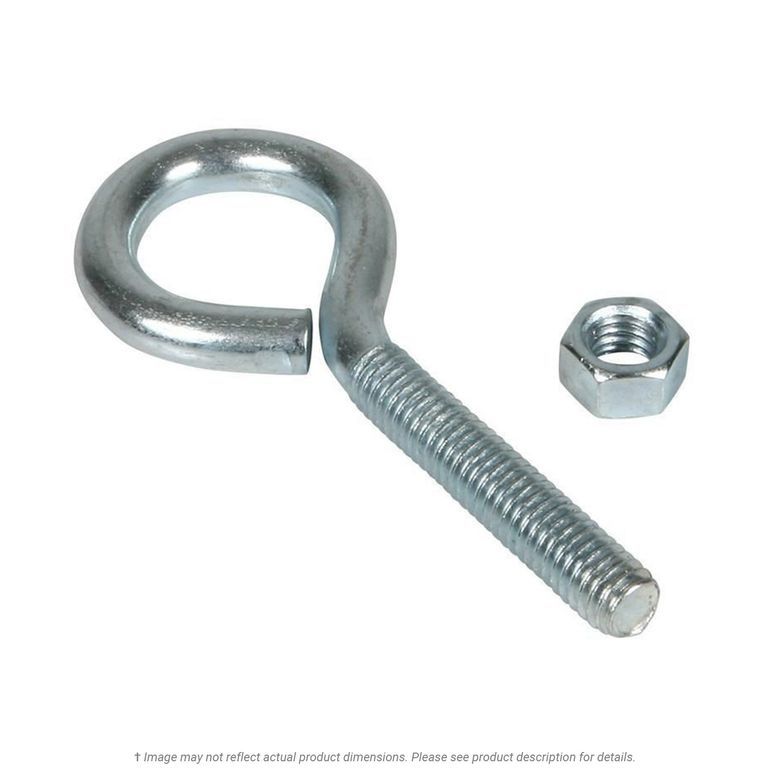

1/4-20 x 2" OAL Zinc Plated Bent Wire Eyebolt with Nut - 20 per Box
Selected Zinc Plated Bent Wire Eyebolt with Nut
1/4-20 x 2" OAL Zinc Plated Bent Wire Eyebolt with Nut - 20 per Box
Item #: HI10800
Brand: Hindley Mfg.
Manufacturers:
Description
Bent wire eye bolts, also referred to as wire eye bolts, or turned eye bolts, are a steel wire fastener featuring a nearly closed eye loop with a threaded shank on the other end. Designed for through-hole applications, bent wire eye bolts are often used for routing cable, and light-duty lashing and suspension within their appropriate load limit. Bent wire eye bolts are not for use in rigging or lifting applications as the eye loop can open under heavy loads.
Features
- Simple and Economical solution for suspending light loads and routing cable.
- Clear Zinc Chromate finish for protection against corrosion in light duty environments.
- Suitable for through-hole applications in wood, metal, and concrete
- Each Eye Bolt comes assembled with a Hex Nut
Technical Specs
| Manufacturer | Hindley Mfg. |
|---|---|
| Item Type | Machine Eye Bolt |
| System of Measurement | Inch |
| Diameter | 1/4" |
| Inside Eye | 9/16" |
| Finish | Zinc Plated |
| Grade | Low Carbon |
| Inside Diameter | 9/16" |
| Material | Steel |
| Overall Length | 2" |
| Shank Length | 1" |
| Style | Regular |
| Supplier Part Number | 10800 |
| Thread Length | 7/8" |
| Threads Per Inch | 20 |
| Thread Size | 1/4-20 |
| Thread Type | Coarse |
| Weight per 100 | 4.6 lbs. |
| Wire Diameter | 0.214" |
| Package Quantity | 20 per Box / 200 per Case |
