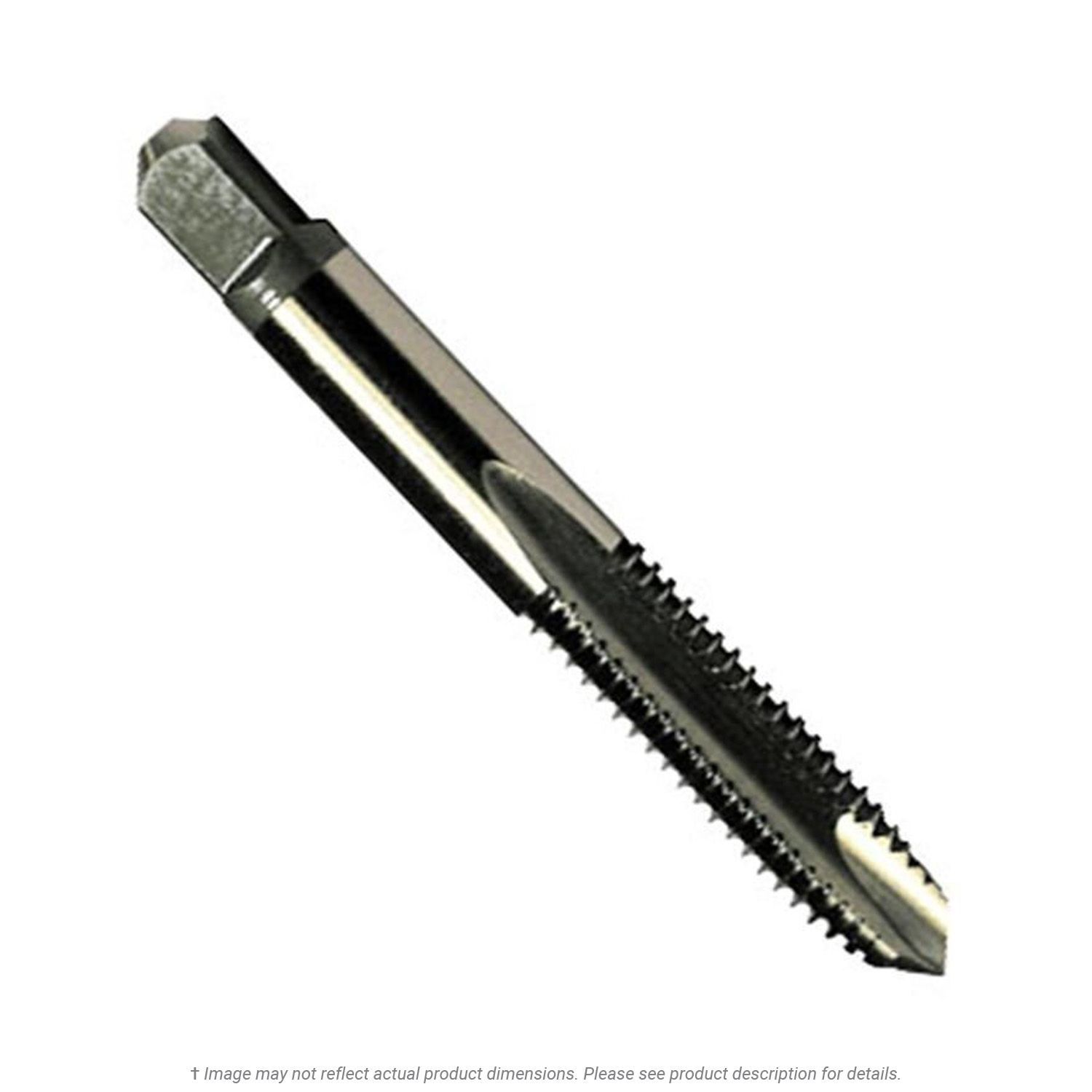

M8 x 1.25 Metric Spiral Point Tap, Coarse, D5, Bright

39256
Viking
60234 050728602345
Item #: .8CDTG
UPC: 050728602345
$15.33 /Each
Package Size: 1

Total Price: $15.33
This item is currently Out of Stock but is on order and will be arriving soon.

Accessories

Viking Type 21 Metric HSS Spiral Point Plug Taps are designed to be a chip clearing tap for through-hole tapping applications. Also known as Gun Taps, these have spiral-point flutes that push the chips ahead of the tap and out of through holes. Because they don't need to be reversed to prevent chip buildup, they produce threads more efficiently than standard taps and are particularly suitable for production work. They're made of high-speed steel for use on most metal and plastic. With a square shank, they're compatible with tap wrenches and tap holders for drill presses and milling machines. All Spiral Point taps have a plug chamfer with 3-5 chamfered cutting threads, so they're suitable for start-to-finish tapping.

Viking taps are made in America of High Speed Steel with a bright finish. They can be used for tapping by hand or under power.

  • Spiral Taps clear chips ahead of the tap for drilling through holes
  • Feature a plug chamfer point for start to finish tapping
  • Use for through hole tapping
  • Ideal for power tapping and production applications
  • Popular for use in general machine tapping or CNC tapping
  • Uncoated bright finish taps suitable for a wide range of applications.
  • Available in both Metric and UNC/UNF Threads.
  • Made in the USA
Manufacturer Viking
Item Type Spiral Point Tap
System of Measurement Metric
Diameter M8
Chamfer Type Plug
Finish Bright
Flute Type Straight
Material High Speed Steel
Number of Flutes 2
Screw Diameter M8
Supplier Part Number 60234
Tap Drill Size 17/64"
Tap Type 21
Thread Pitch 1.25
Thread Type Coarse
Package Quantity 3
Country of Origin United States of America
