#10-32 Zinc Plated Forged Steel Wing Nut
#10-32 Zinc Plated Forged Steel Wing Nut
Choose Favorites List

#10-32 Zinc Plated Forged Steel Wing Nut

#10-32 Zinc Plated Forged Steel Wing Nut
#10-32 Zinc Plated Forged Steel Wing Nut

#10-32 Zinc Plated Forged Steel Wing Nut

10656
KL Jack Quality Vendor
Item #: 10FNWIZ
$9.30 /Box
Only $0.09 Each
Package Size: 100

Quantity Discount

Buy10+
$8.70

CHOOSE UNIT OF MEASURE

Total Price: $9.30
Extended Description
Technical Specs

Cold Forged Steel

Manufacturer KL Jack Quality Vendor
Item Type Wing Nut
System of Measurement Inch
Diameter #10
Between Wings 0.27" max / 0.22" min
Boss Diameter 0.43" max / 0.39" min
Boss Height 0.18" max / 0.14" min
Finish Zinc Plated
Grade Low Carbon
Material Carbon Steel (Cold Forged)
Dimensional Specification ASME B18.6.9, Type A, Light Series
Thread Specification ASME B1.1, UNC & UNF, Class 2B
Threads Per Inch 32
Thread Type Fine
Wing Height 0.47" max / 0.34" min
Wing Spread 0.91" max / 0.78" min
Wing Thickness 0.14" max / 0.1" min

Substitutes

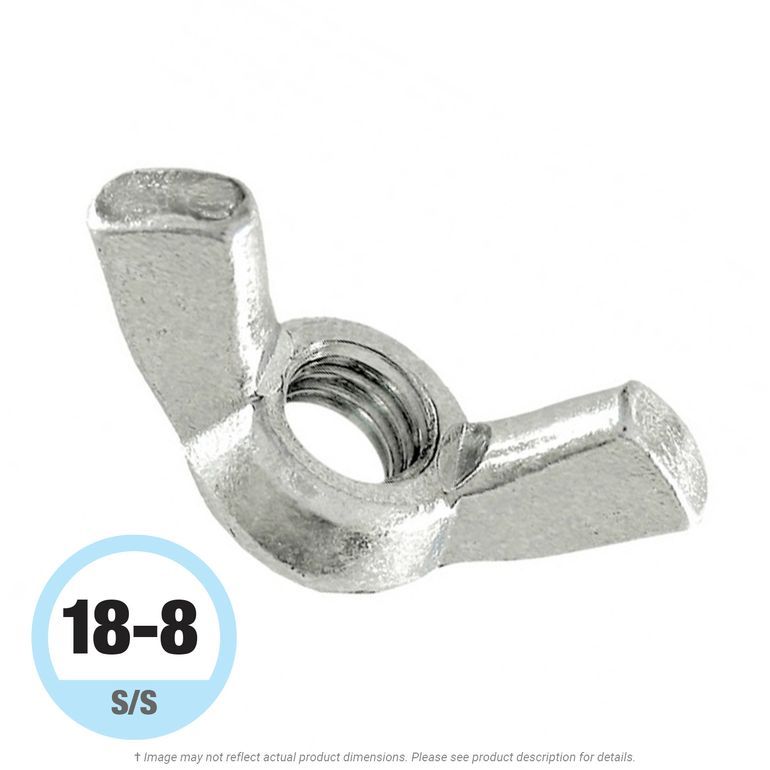

#10-32 Stainless Steel Wing Nut 18-8

#10FNWIS
View Details

$20.28 /Box

#10-32 Brass Wing Nut

#10FNWIB
View Details

$26.00 /Box
