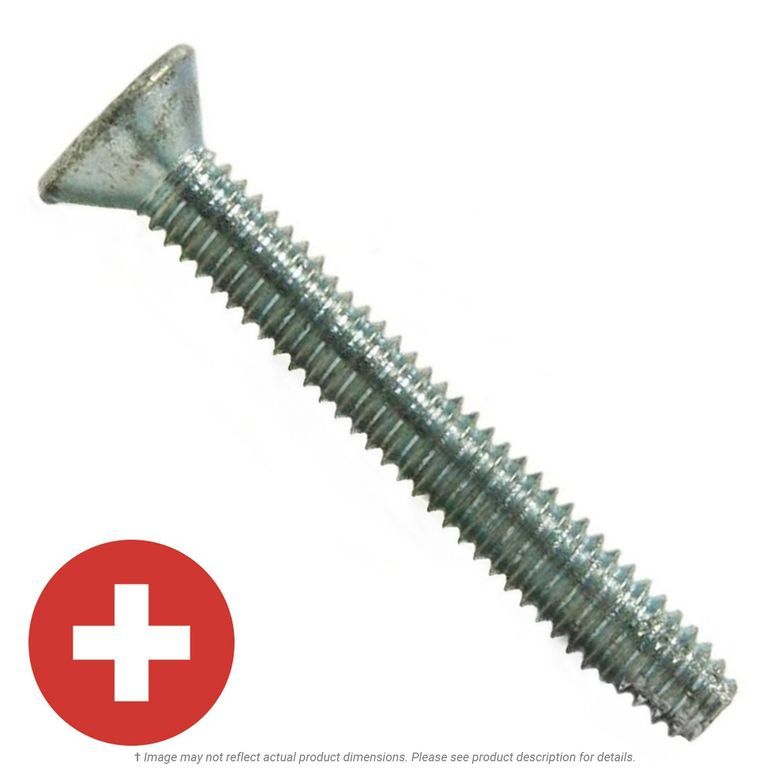

1/4"-20 x 2-1/2" Zinc Plated Phillips Flat Head Thread Cutting Screw Type F

13681
KL Jack Quality Vendor
Item #: 25C250FXFZ
$22.00 /Box
Only $0.22 Each
Package Size: 100

Quantity Discount

Buy10+
$19.80

Total Price: $22.00

These steel screws are zinc plated to resist corrosion in wet environments. They're beveled under the head for use in countersunk holes. Screws cut threads in drilled holes as they’re turned, so they require less driving torque and cause less stress on your material than thread forming screws. Length is measured from the top of the head.

Manufacturer KL Jack Quality Vendor
Item Type Flat Head Thread Cutting Screw
System of Measurement Inch
Drive Type Phillips
Diameter 1/4"
Length (inches) 2-1/2"
Countersink Angle 82°
Drive Size #3
Head Diameter 0.442"-0.477"
Head Height 0.131"-0.153"
Head Style Flat
Material Steel
Pilot Drill Diameter #2 Drill
Point Type F
Specification ASME B18.6.3
Threads Per Inch 20
Thread Type Coarse
