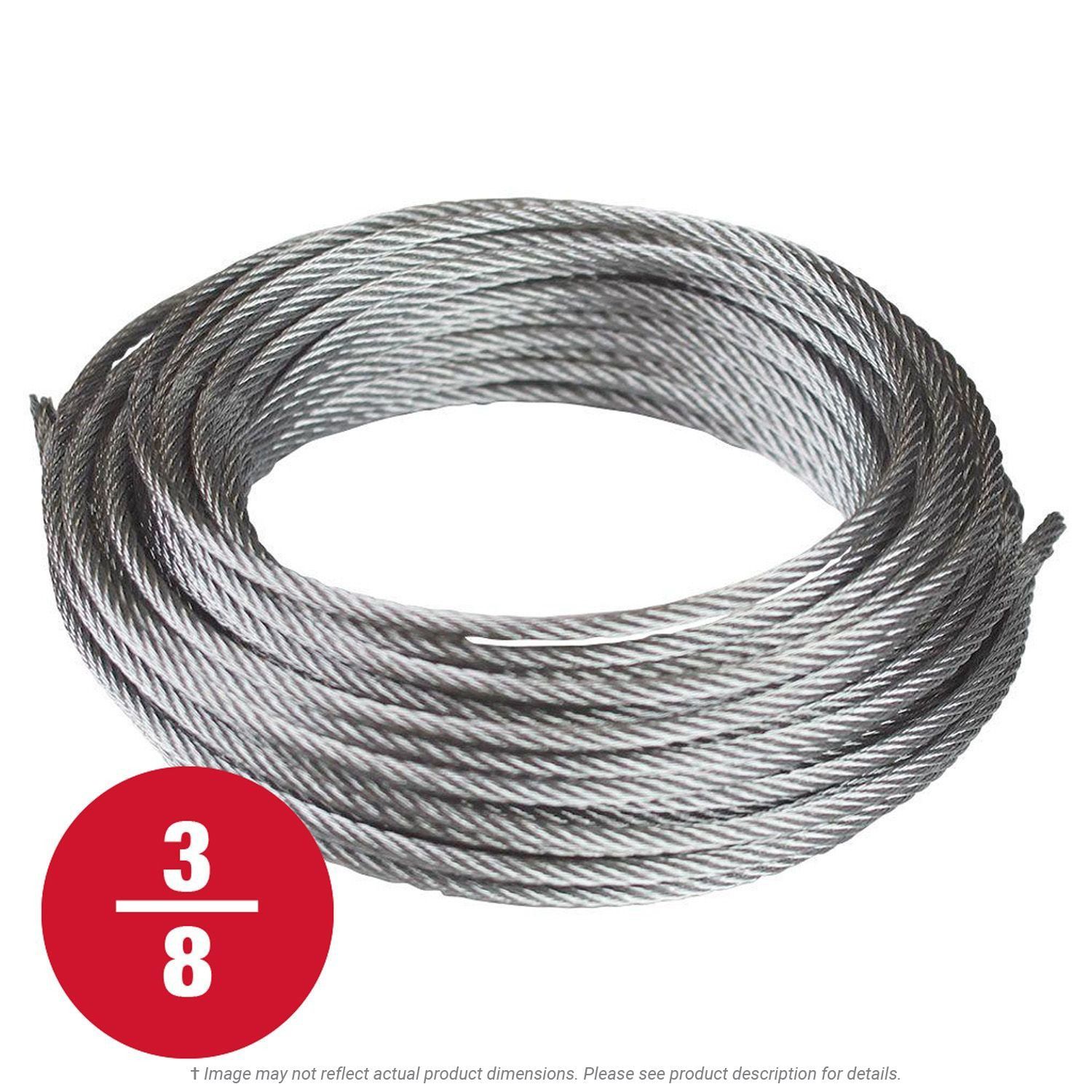

3/8" x 100 ft. Galvanized 7x19 Cable

17521
KL Jack Quality Vendor
Aircraft Cable, 100 ft per roll, 7x19 Wire Construction
Item #: 37RGAC
$122.22 /Roll of Material
Package Size: 1

Quantity Discount

Buy5+ Buy10+
$105.7692 $96.4912
  • This item requires special shipping. Additional fees may apply.

Total Price: $122.22
Aircraft Cable, 100 ft per roll, 7x19 Wire Construction

Galvanized (Zinc Coated) commercial grade cable which is used for many material handling applications and common uses such as garage door cables, winch lines, tie-downs, hanging signs, and guy wires. Flexible construction runs easily over pulleys. Cable is made in accordance with Federal Specification RR-W-410. The cable is zinc coated for durability and moderate corrosion resistance. The 7x19 construction consists of 19 individual wires laid in a spiral around a center core wire to form a strand. Seven strands are then wound together to form a cable. Breaking strength ( failure point under load) is 5 times the listed working load limit (WLL) with a design factor 5 to 1. Any breaking strength ratings and load limits shown are listed for comparison and reference purposes only and are not for engineering use. Not intended for aircraft use or in overhead lifting applications.

Manufacturer KL Jack Quality Vendor
Item Type Cable/Wire Rope
Diameter 3/8"
Length (inches) 100 ft. (1,200")
Construction 7x19
Core IWRC
Finish Galvanized
Flexibility Extra Flexible
Kind 7x19
Material Steel
Specification RR-W-410
Weight 25 lbs per 100'
Working Load Limit (Straight Pull) 2,880 lbs
*Working Load Limit Is Based On A Design Factor Of 5:1
**Not For Aircraft Use
