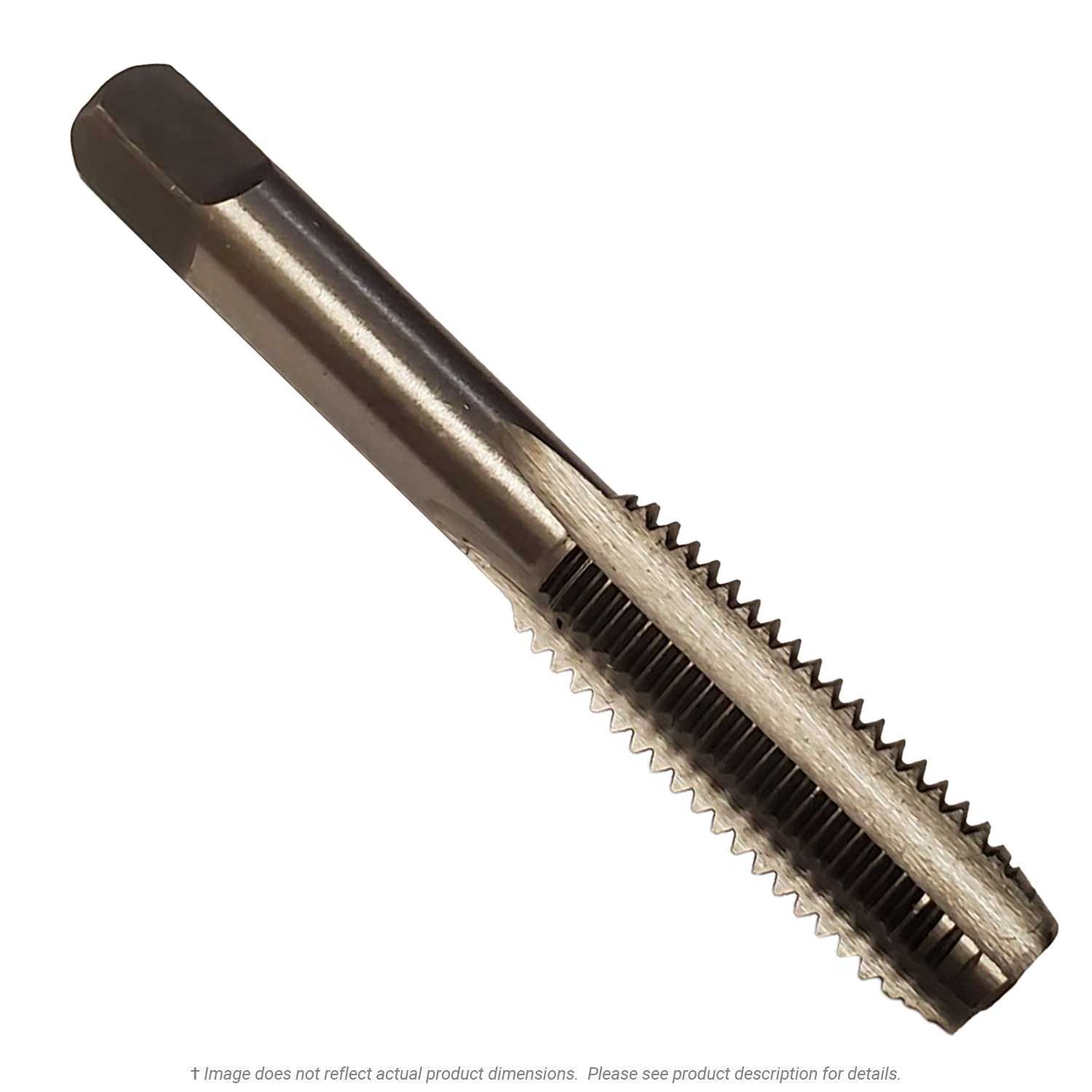

#3-48 UNC Plug Tap, 3 Flute, Plain Finish

17626
Viking
54910 050728549107
Item #: 3CDTP
UPC: 050728549107
$4.50 /Each
Package Size: 1

Quantity Discount

Buy12+
$3.9675

CHOOSE UNIT OF MEASURE


Total Price: $4.50

Accessories

Viking Type 721 Plug Chamfer Hand Taps are manufactured of High Carbon Steel with a plain finish. The Plug Tap chamfer style is the most popular and versatile of the 3 common styles of hand taps. They can be used for creating new threads or chasing damaged and rusted threads. The first 3 to 5 threads of a Plug tap are chamfered. This allows the user to begin creating new threads nearly as easily as when using a Taper tap with the additional benefit of having more complete threads available for carrying a useable thread closer to the bottom of a blind hole. The progressively chamfered threads of a Plug tap reduce the effort necessary to create new threads by progressively increasing the amount of material being removed by the tap. Plug taps may be used in both blind or through hole tapping. For tapping operations that require a complete thread to the bottom of a blind hole a Bottom tap will be required. Bottom taps are often used as a secondary operation after using a Taper or Plug tap to begin the threading process. Viking Type 721 Plug Taps are an economical yet high quality tap series ideal for a wide range of Automotive and Shop hand tapping applications. Made in America of High Carbon Steel.

  • Taps can create new threads or re-thread damaged or rusted threads
  • Use for through hole or blind hole tapping
  • Hand Taps come in three common styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
  • Available in UNC and UNF Threads.
  • Made in the USA
Manufacturer Viking
Item Type Plug Tap
System of Measurement Inch
Diameter #3
Chamfer Type Plug
Finish Plain Finish
Flute Type Straight
Material High Carbon Steel
Number of Flutes 3
Screw Diameter #3
Tap Drill Size #47
Supplier Part Number 54910
Tap Type 721
Threads Per Inch 48
Thread Type Coarse (UNC)
Package Quantity 3
Country of Origin United States
