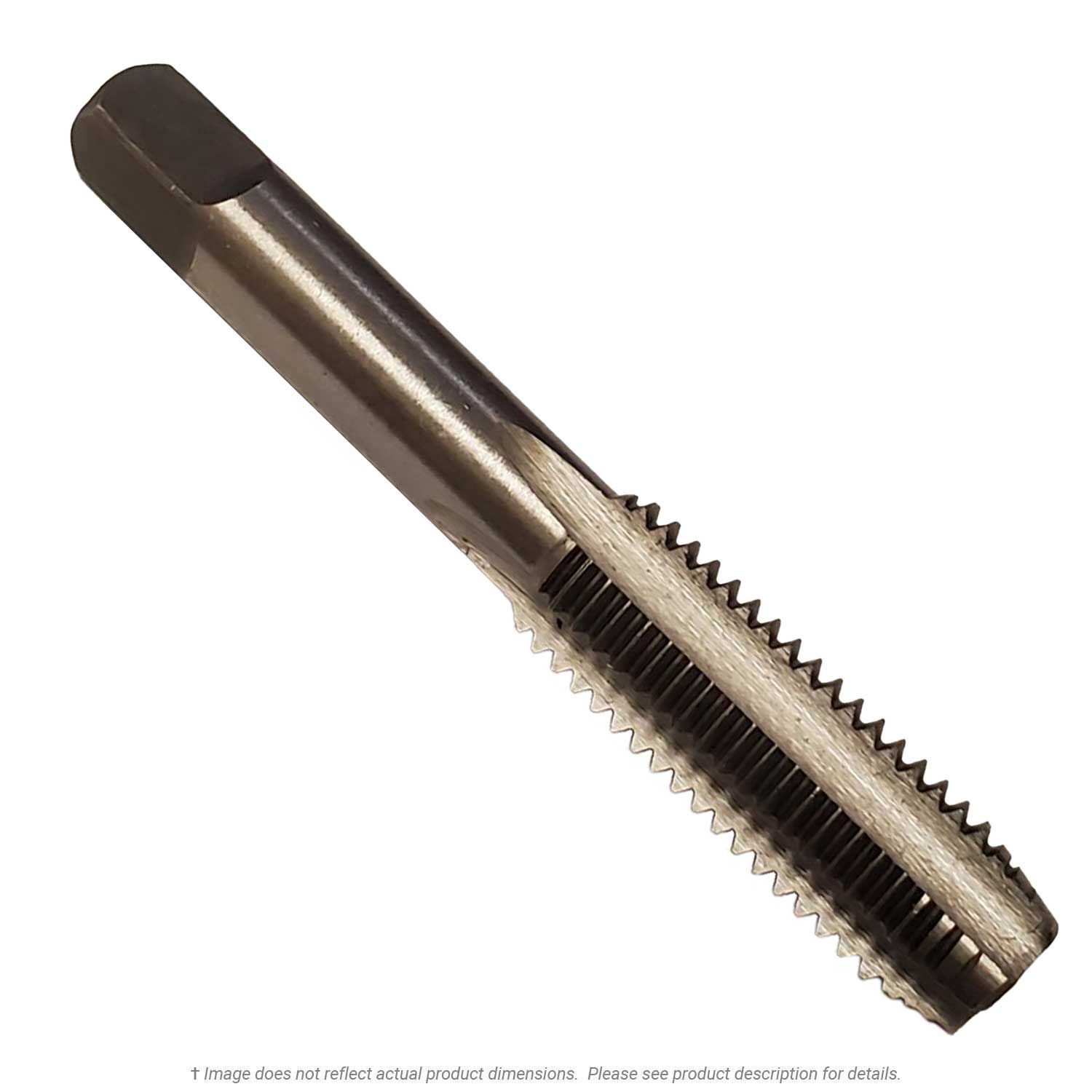

#3-56 Plug Tap Straight Flute

17663
Viking
54920 050728549206
Item #: 3FDTP
UPC: 050728549206
$4.50 /Each
Package Size: 1

Quantity Discount

Buy12+
$3.9675

CHOOSE UNIT OF MEASURE


Total Price: $4.50

Accessories

Viking Type 24 HSS Plug Hand Taps are the most popular and versatile of the 3 common styles of hand taps. They can be used for creating new threads or chasing damaged and rusted threads. The first 3 to 5 threads of a Plug tap are chamfered. This allows the user to begin creating new threads nearly as easily as when using a Taper tap with the additional benefit of having more complete threads available for carrying a useable thread closer to the bottom of a blind hole. The progressively chamfered threads of a Plug tap reduce the effort necessary to create new threads by progressively increasing the amount of material being removed by the tap. Plug taps may be used in both blind or through hole tapping. For tapping operations that require a complete thread to the bottom of a blind hole a Bottom tap will be required. Bottom taps are often used as a secondary operation after using a Taper or Plug tap to begin the threading process. Viking taps are made in America of High Speed Steel with a bright finish. They can be used for tapping by hand or under power.

  • Taps can create new threads or re-thread damaged or rusted threads
  • Use for through hole or blind hole tapping
  • High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
  • High speed steel hand taps are the most versatile taps for hand use, or for tapping under power
  • Hand taps are popular for use in general machine tapping or CNC tapping
  • Uncoated bright finish taps suitable for a wide range of applications.
  • Available in UNC (Coarse) and UNF (Fine) Threads.
  • Made in the USA
Manufacturer Viking
Item Type Plug Tap
System of Measurement Inch
Diameter #3
Chamfer Type Plug
Finish Bright
Material High Carbon Steel
Number of Flutes 3
Screw Diameter #3
Tap Drill Size #46
Supplier Part Number 54920
Tap Type 721
Threads Per Inch 56
Thread Type Fine (UNF)
Package Quantity 3
Country of Origin United States
