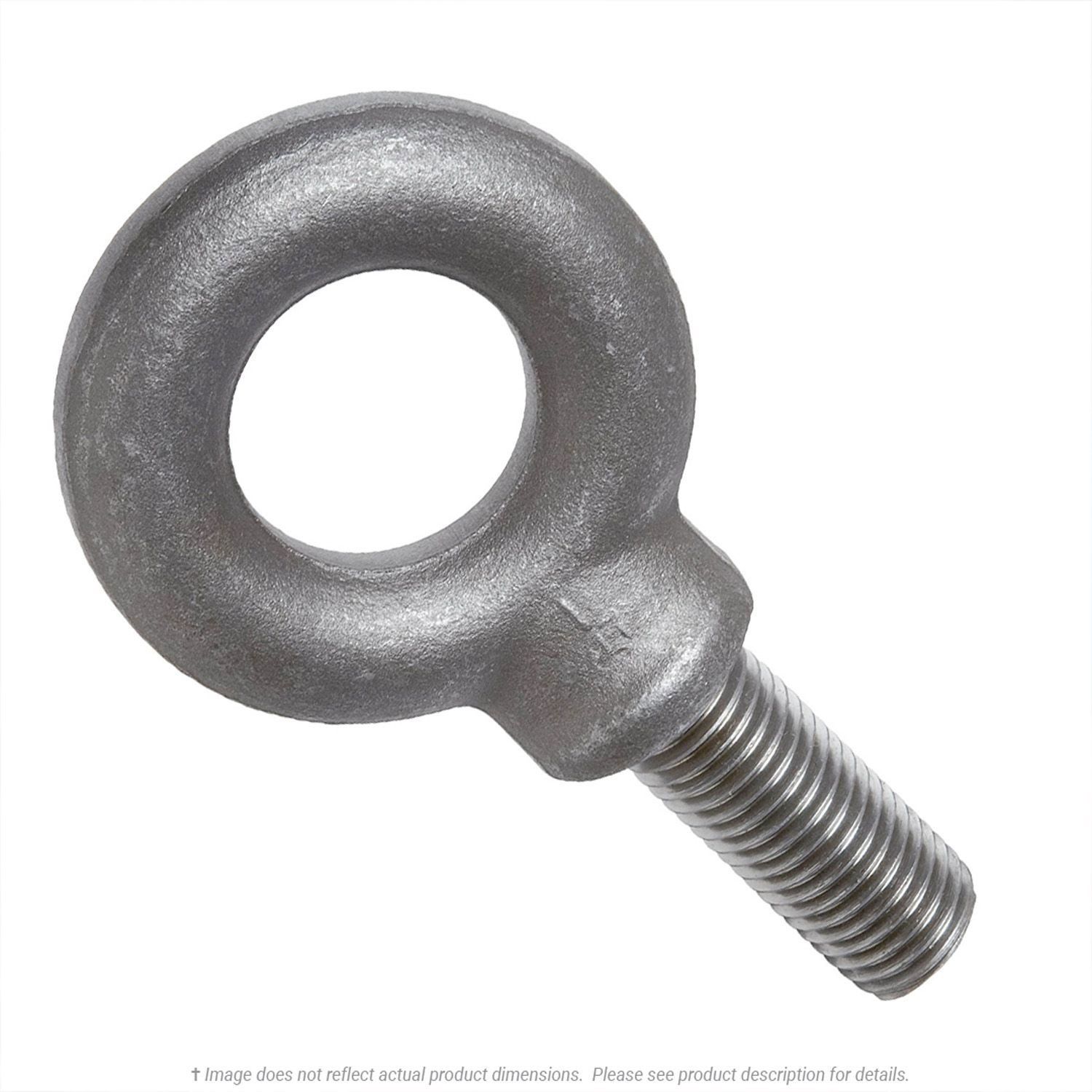

5/8"-11 x 1-3/4" Shoulder Machinery Lifting Eyebolt - IMPORT
Choose Favorites List

5/8"-11 x 1-3/4" Shoulder Machinery Lifting Eyebolt - IMPORT

5/8"-11 x 1-3/4" Shoulder Machinery Lifting Eyebolt - IMPORT

5/8"-11 x 1-3/4" Shoulder Machinery Lifting Eyebolt - IMPORT

20983
KL Jack Quality Vendor
**IMPORT BRAND**
Item #: 62CBMS/I
$6.32 /Each
Package Size: 1

Quantity Discount

Buy10+ Buy25+
$5.7912 $5.3848
Total Price: $6.32
Description
Extended Description
Technical Specs
Disclaimer
**IMPORT BRAND**

Lifting Eye Bolts are a threaded fastener intended for use in lifting. They have a large shouldered eye and a fully threaded shank. It is important that Lifting Eye Bolts are properly installed and fully seated so that the shoulder’s contact face is flush against the lifting surface to limit any transverse loads on the shank of the eye bolt. Straight (Vertical) load values are based on a safety design factor of 5 to 1. Any angled loading of the Lifting Eye will greatly reduce it’s load capacity and is not recommended. Manufactured to ASME B30.26 requirements of Drop Forged Heat Treated Steel.

Manufacturer KL Jack Quality Vendor
Item Type Shouldered Machine Eye Bolt
System of Measurement Inch
Diameter 5/8"
Inside Eye 1-3/8"
Outside Eye 2-3/8"
Finish Plain
Material Steel
Overall Length 4-1/2"
Shank Length 1-3/4"
Shouldered Yes
Shoulder Diameter 1.15" +/-
Thread Length 1-3/4"
Threads Per Inch 11
Thread Type Coarse
Weight 0.765 lbs
Working Load Limit (Straight Pull) 4,000 lbs
Country of Origin China

Any Information Supplied Is Strictly For Reference.
