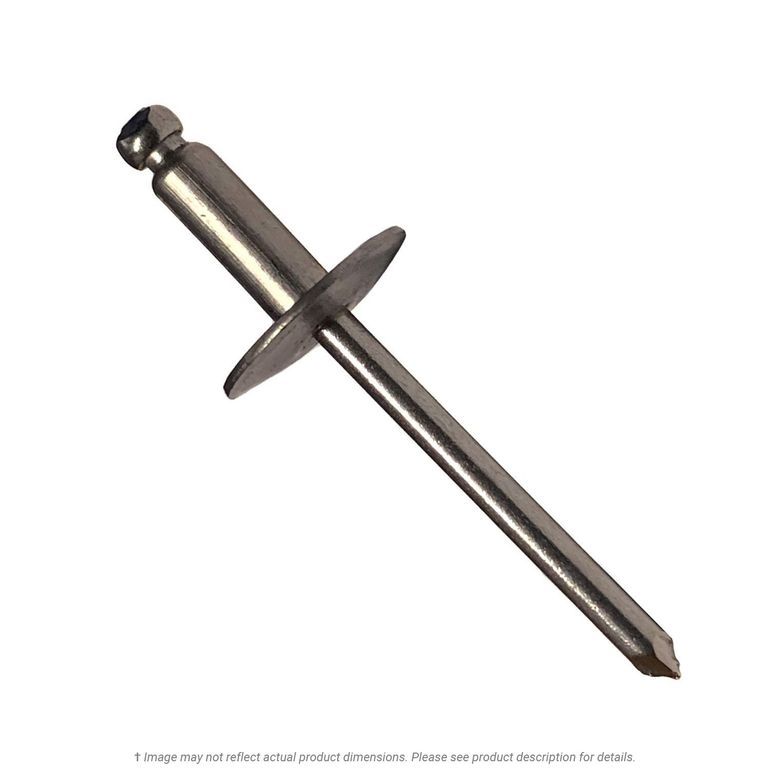

1/8" Diameter x 1/8"-1/4" Grip Stainless Steel Large Flange Rivet
Choose Favorites List

1/8" Diameter x 1/8"-1/4" Grip Stainless Steel Large Flange Rivet

1/8" Diameter x 1/8"-1/4" Grip Stainless Steel Large Flange Rivet

1/8" Diameter x 1/8"-1/4" Grip Stainless Steel Large Flange Rivet

4543
Marson
SSBL4-4S M40418
Item #: CCL44
$27.08 /Box
Only $0.27 Each
Package Size: 100

Quantity Discount

Buy100+ Buy500+
$19.1408 $15.4060

CHOOSE UNIT OF MEASURE

Total Price: $27.08
Extended Description
Technical Specs

Blind Style with Large Flange Head. Stainless Steel Rivet Body and Pin ( Mandrel ) 1/8 dia., .188-.250 grip range, use #30 drill bit

Manufacturer Marson
Item Type Large Flange Blind Rivet
System of Measurement Inch
Diameter 1/8"
Length (inches) 13/32"
Finish Plain
Flange Diameter 3/8"
Grade 300 Series
Grip Range 1/8" - 1/4"
Head Diameter 0.615"
Head Height 0.045"
Head Style Dome
Hole Size #30
Material Stainless Steel
Shear Strength 520 lbs. (Average)
Supplier Part Number SSBL4-4S M40418
Tensile Strength 600 lbs. (Average)
