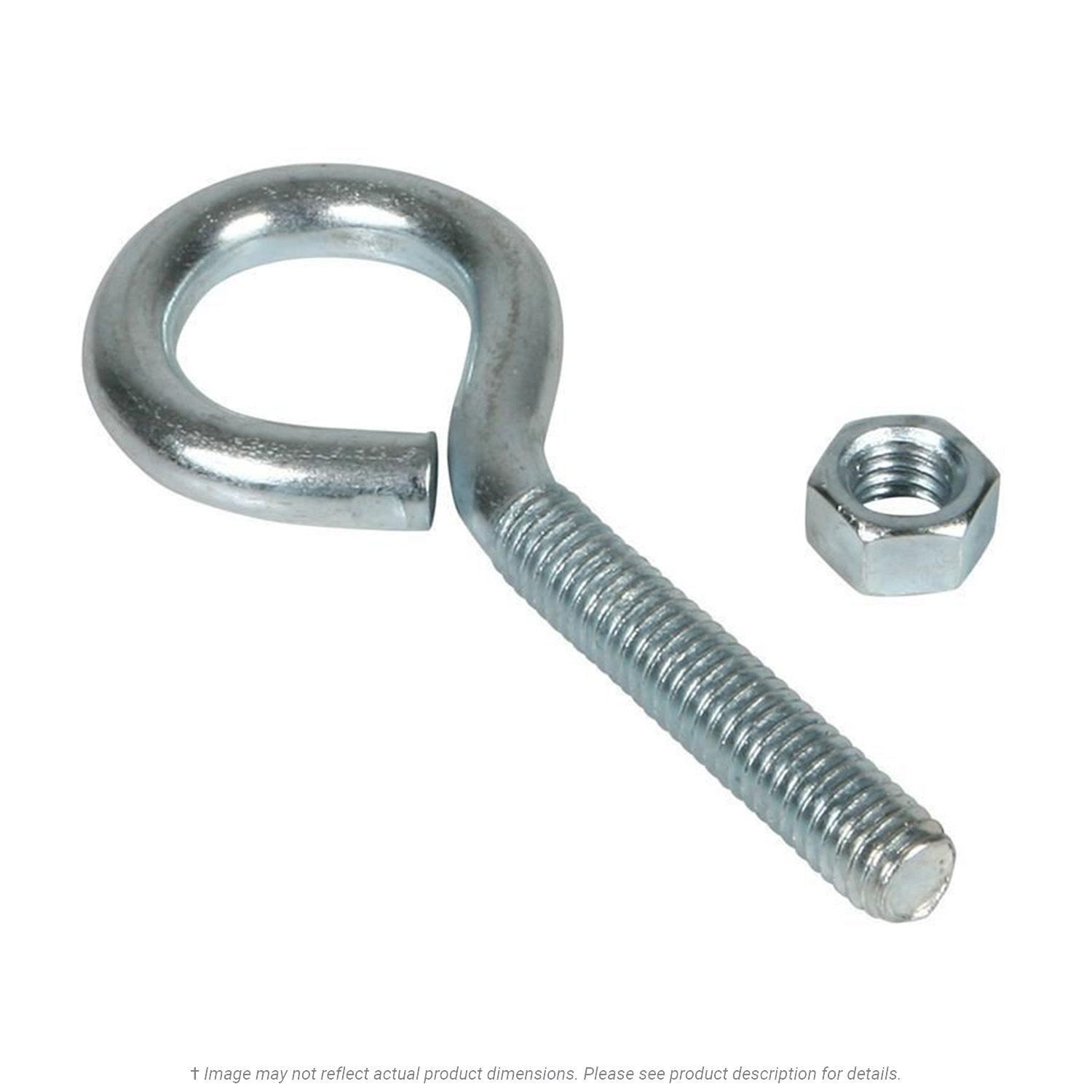

1/4-20 x 3" OAL Zinc Plated Bent Wire Eyebolt with Nut - 20 per Box

5858
Hindley Mfg.
10803
Item #: HI10803
$12.72 /Box
Only $0.64 Each
Package Size: 20

Quantity Discount

Buy10+
$12.19

CHOOSE UNIT OF MEASURE


Total Price: $12.72

Bent wire eye bolts, also referred to as wire eye bolts, or turned eye bolts, are a steel wire fastener featuring a nearly closed eye loop with a threaded shank on the other end. Designed for through-hole applications, bent wire eye bolts are often used for routing cable, and light-duty lashing and suspension within their appropriate load limit. Bent wire eye bolts are not for use in rigging or lifting applications as the eye loop can open under heavy loads.

  • Simple and Economical solution for suspending light loads and routing cable.
  • Clear Zinc Chromate finish for protection against corrosion in light duty environments.
  • Suitable for through-hole applications in wood, metal, and concrete
  • Each Eye Bolt comes assembled with a Hex Nut
Manufacturer Hindley Mfg.
Item Type Machine Eye Bolt
System of Measurement Inch
Diameter 1/4"
Inside Eye 9/16"
Finish Zinc Plated
Grade Low Carbon
Inside Diameter 9/16"
Material Steel
Overall Length 3"
Shank Length 2"
Style Regular
Supplier Part Number 10803
Thread Length 1-3/4"
Threads Per Inch 20
Thread Size 1/4-20
Thread Type Coarse
Weight per 100 5.8 lbs.
Wire Diameter 0.214"
Package Quantity 20 per Box / 200 per Case
