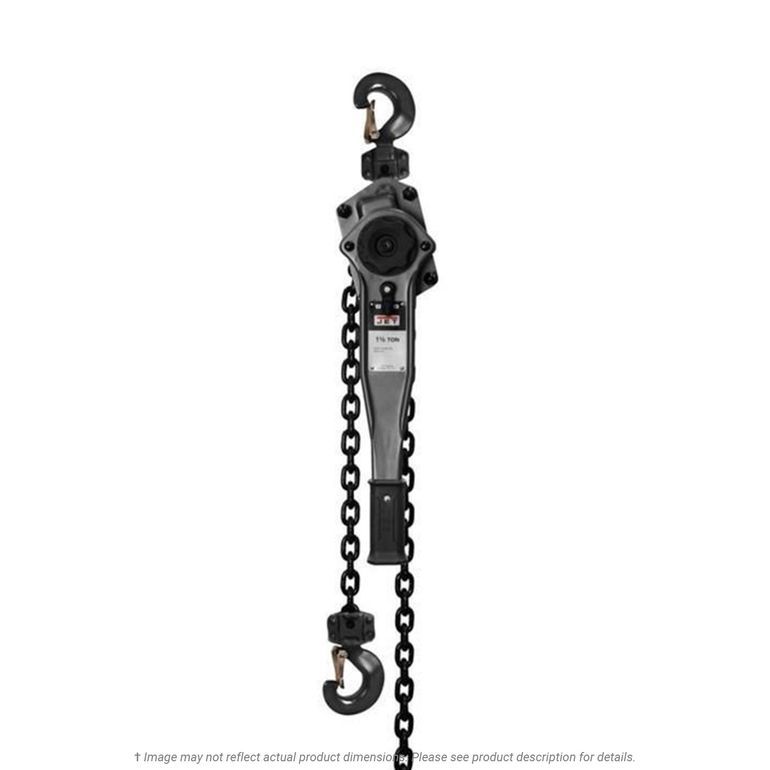

JET JLP-150A-15 Lever Hoist, 1-1/2 Ton x 15 ft. Lift

71459
JET
287402 313254731249
Item #: JLP-150A-15
UPC: 313254731249
$413.10 /Each
Package Size: 1

Total Price: $413.10

JET JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. The JET JLP-A Series is the perfect choice for a contractor grade lever hoist.

  • Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
  • JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
  • The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Redesigned ergonomic grip allows for greater operator control and increased comfort
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • Optional Shipyard Hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
  • Grade 80 black oxide coated load chain for added durability
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Impact resistant all steel construction for added durability and protection
  • Standards
  • This product complies with ANSI / ASME B30.21 and HST-3 Standards
  • Load tested to 125% of capacity with certificate
Manufacturer JET
Item Type Lever Hoist
Capacity 1-1/2 Ton
Headroom 15"
Lift Height 15'
Load Chain Dimensions (0.315") 8 x 24 mm
Net Weight 31 lbs
Specification - ASME B30.21 & HST-3
Supplier Part Number 287402
