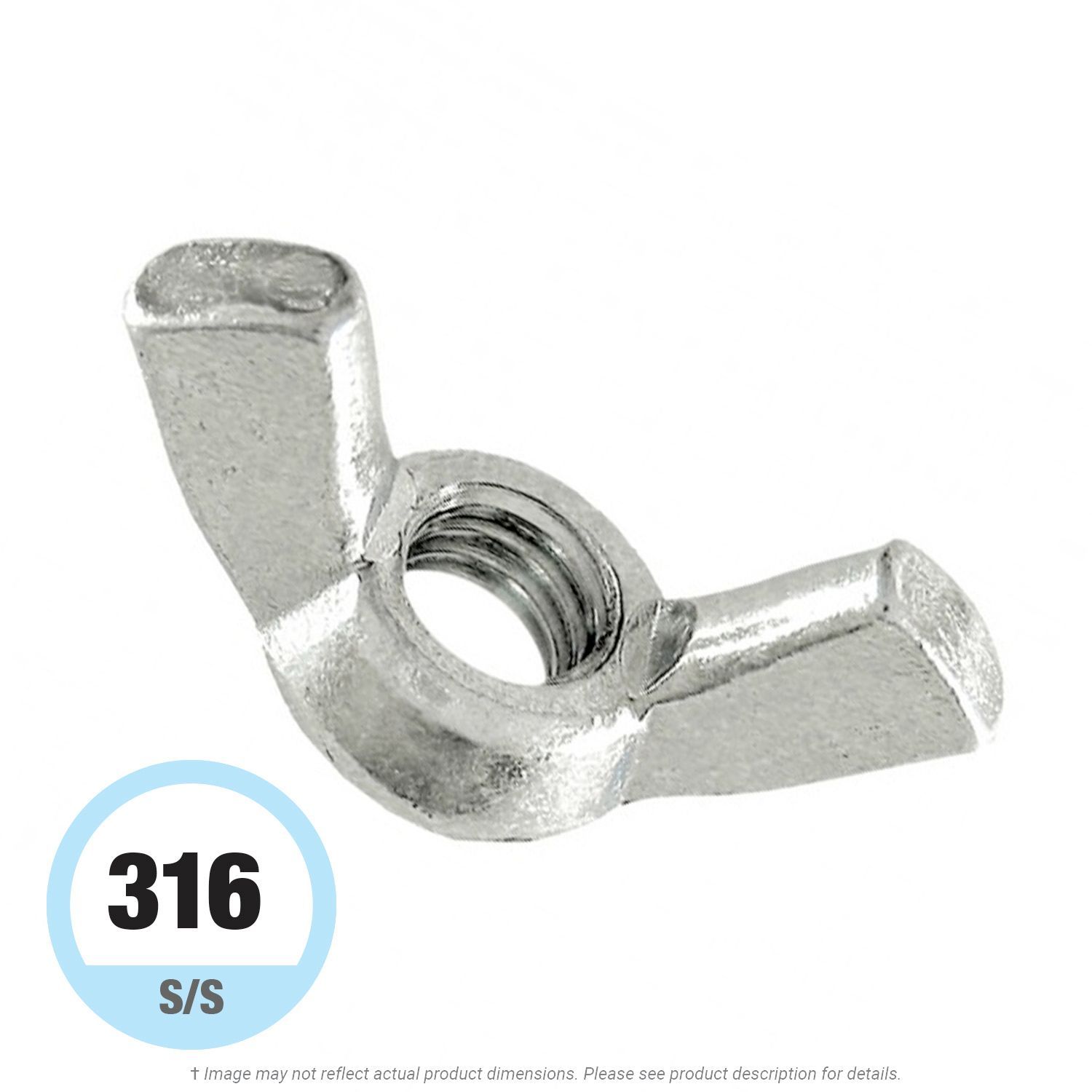

1/4"-20 Stainless Steel Wing Nut 316
1/4"-20 Stainless Steel Wing Nut 316
Choose Favorites List

1/4"-20 Stainless Steel Wing Nut 316

1/4"-20 Stainless Steel Wing Nut 316
1/4"-20 Stainless Steel Wing Nut 316

1/4"-20 Stainless Steel Wing Nut 316

14306
KL Jack Quality Vendor
Item #: 25CNWI3
$167.75 /Box
Only $1.68 Each
Package Size: 100

CHOOSE UNIT OF MEASURE

Total Price: $167.75
Extended Description
Technical Specs

1/4"-20 Stainless Steel Wing Nut 316

Manufacturer KL Jack Quality Vendor
Item Type Wing Nut
System of Measurement Inch
Diameter 1/4"
Between Wings 0.33" max / 0.26" min
Boss Diameter 0.5" max / 0.45" min
Boss Height 0.22" max / 0.17" min
Grade 316
Material Stainless Steel
Dimensional Specification ASME B18.6.9, Type A, Light Series
Thread Specification ASME B1.1, UNC & UNF, Class 2B
Threads Per Inch 20
Thread Type Coarse
Wing Height 0.57" max / 0.43" min
Wing Spread 1.1" max / 0.97" min
Wing Thickness 0.18" max / 0.14" min

Substitutes

1/4"-20 Zinc Plated Forged Steel Wing Nut

#25CNWIZ
View Details

$8.71 /Box

1/4"-20 Stainless Steel Wing Nut 18-8

#25CNWIS
View Details

$28.61 /Box

1/4"-20 Brass Wing Nut

#25CNWIB
View Details

$33.62 /Box
