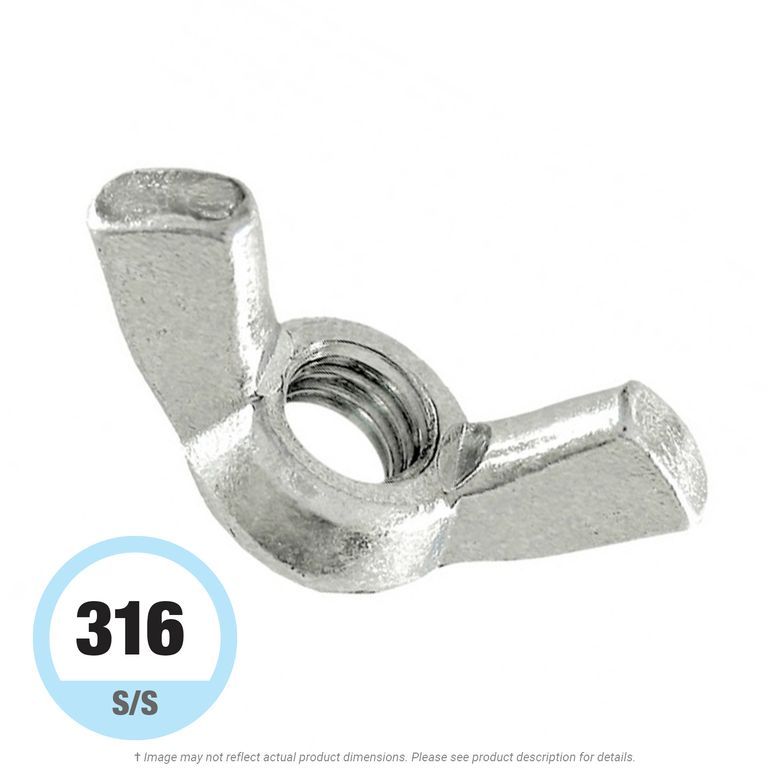

1/4"-20 Stainless Steel Wing Nut 18-8

14309
KL Jack Quality Vendor
Item #: 25CNWIS
$26.47 /Box
Only $0.26 Each
Package Size: 100

Quantity Discount

Buy10+ Buy25+
$23.4140 $21.3780

CHOOSE UNIT OF MEASURE


Total Price: $26.47

These wing nuts have good chemical resistance and may be mildly magnetic. The wings provide more leverage for greater torque while tightening than knurled-head thumb nuts.

Manufacturer KL Jack Quality Vendor
Item Type Wing Nut
System of Measurement Inch
Diameter 1/4"
Between Wings 0.33" max / 0.26" min
Boss Diameter 0.5" max / 0.45" min
Boss Height 0.22" max / 0.17" min
Grade 18-8
Material Stainless Steel
Dimensional Specification ASME B18.6.9, Type A, Light Series
Thread Specification ASME B1.1, UNC & UNF, Class 2B
Threads Per Inch 20
Thread Type Coarse
Wing Height 0.57" max / 0.43" min
Wing Spread 1.1" max / 0.97" min
Wing Thickness 0.18" max / 0.14" min
